200m HD Rextron KVM Extender (KVM-USB > PC-USB)
200m HD Rextron KVM Extender (KVM-USB > PC-USB)
REF: LP001
Specifications
- Interconnection of modules with Cat.5 UTP cable at a maximum distance of 200 m.
- Maximum resolution of 1920 x 1200 (WUXGA) and 1920 x 1080 (Full HD).
- Adjustment of the video quality through keyboard by means of a combination of keys (hotkeys).
- Size modules: 156 x 65 x 20 mm.
- Weight modules: 293 g.
Watch video
PVP
€326.32
Price including VAT:
€401.37
PVD
€273.23
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- Interconnection of modules with Cat.5 UTP cable at a maximum distance of 200 m.
- Maximum resolution of 1920 x 1200 (WUXGA) and 1920 x 1080 (Full HD).
- Adjustment of the video quality through keyboard by means of a combination of keys (hotkeys).
- Size modules: 156 x 65 x 20 mm.
- Weight modules: 293 g.
Related products
More info

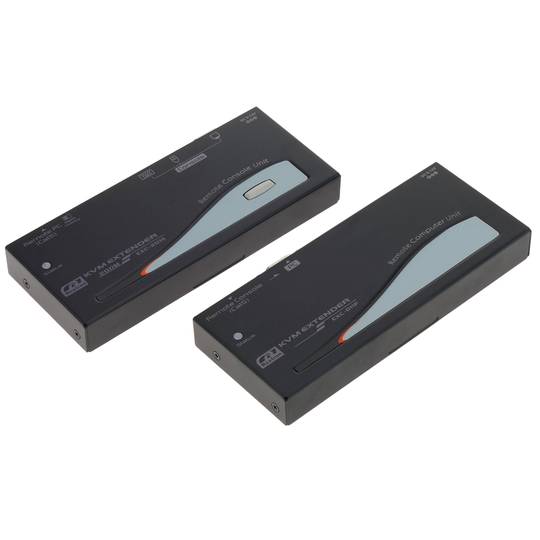

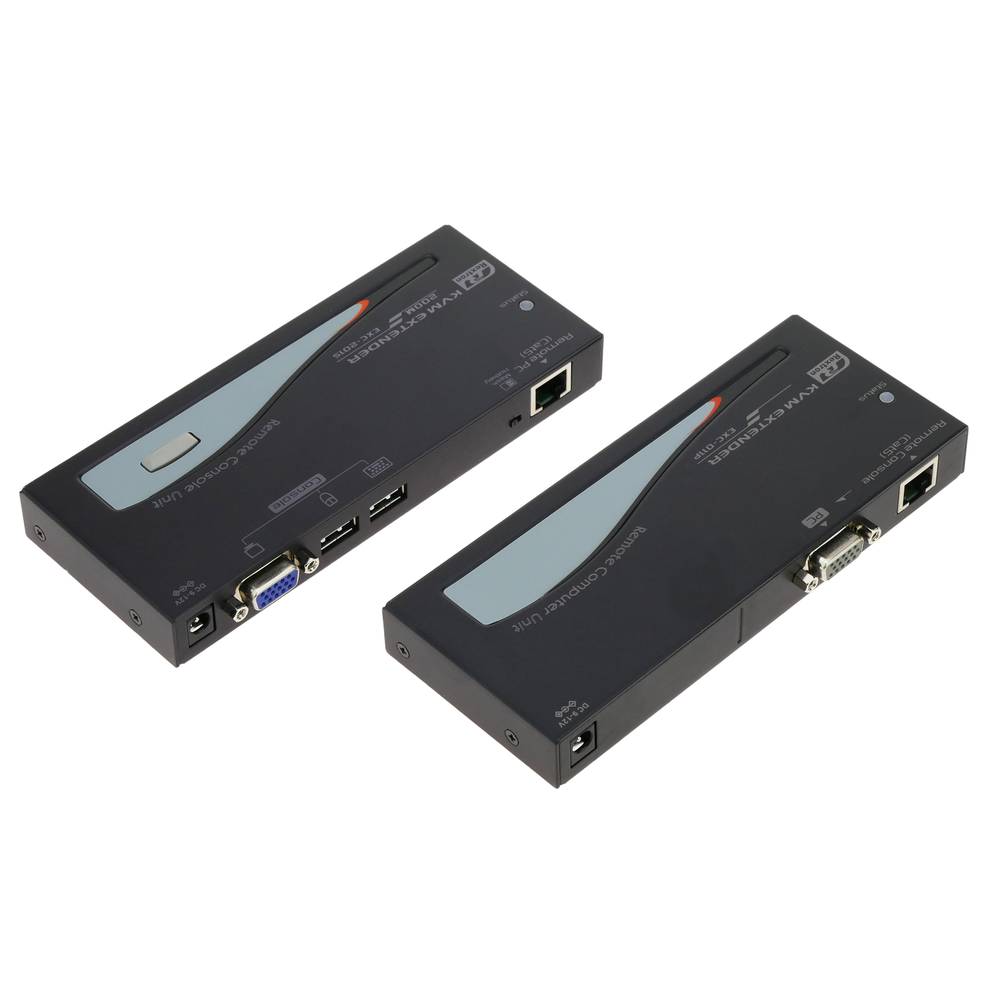

Extender of KVM USB (keyboard, mouse and monitor) through UTP cable Cat.5 (or superior) and to a maximum distance of 200 m. supports resolutions up to 1920 x 1200 (WUXGA) and 1920 x 1080 (Full HD). The range of Rextron extenders offer solutions adapted to your needs. The KVM extender through the UTP cable has two different parts (or modules): Station Unit and Computer Unit. The control address is always from the Station Unit to the Computer Unit.

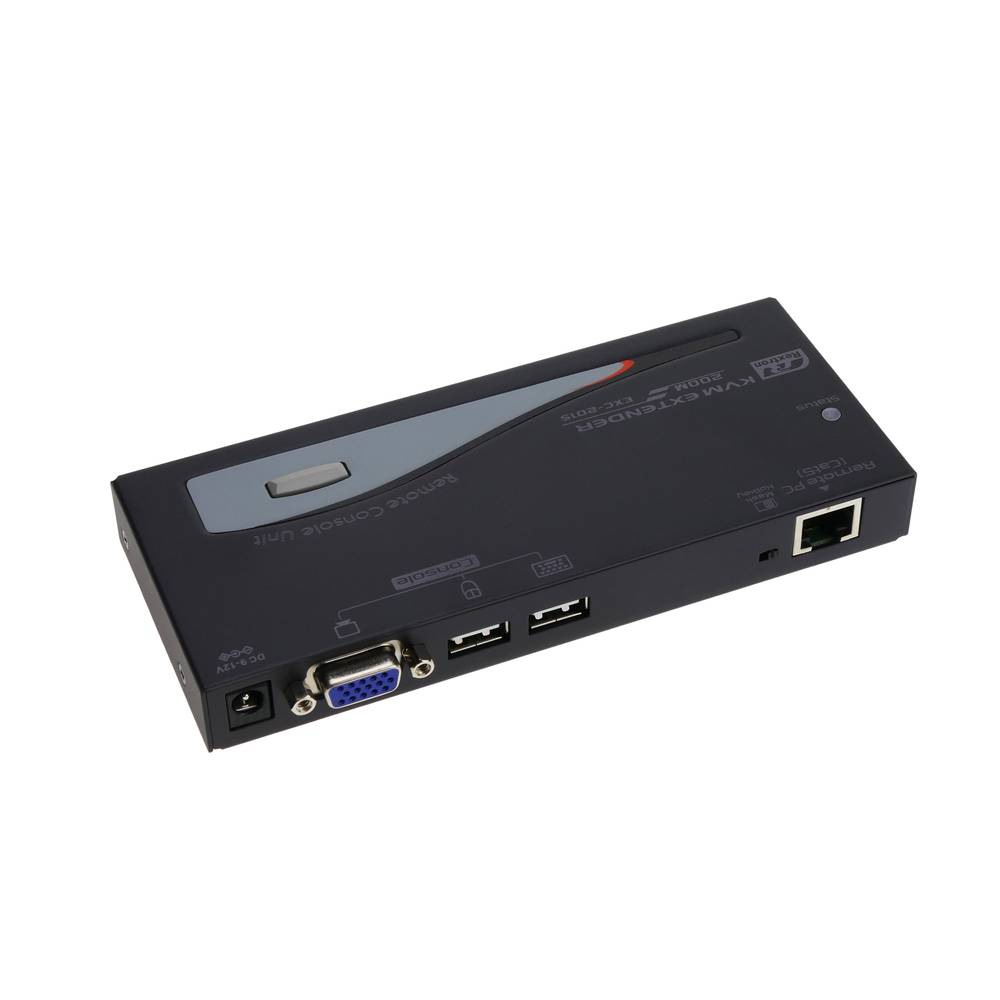

Station Unit
Station Unit
- A KVM console is connected to it. It has USB connectors (2xUSB A-Female + 1xHD15-Female) for keyboard, mouse and monitor. This console allows control of the PC connected to the Computer Unit.
- RJ45-Female connector for interconnection of both modules.

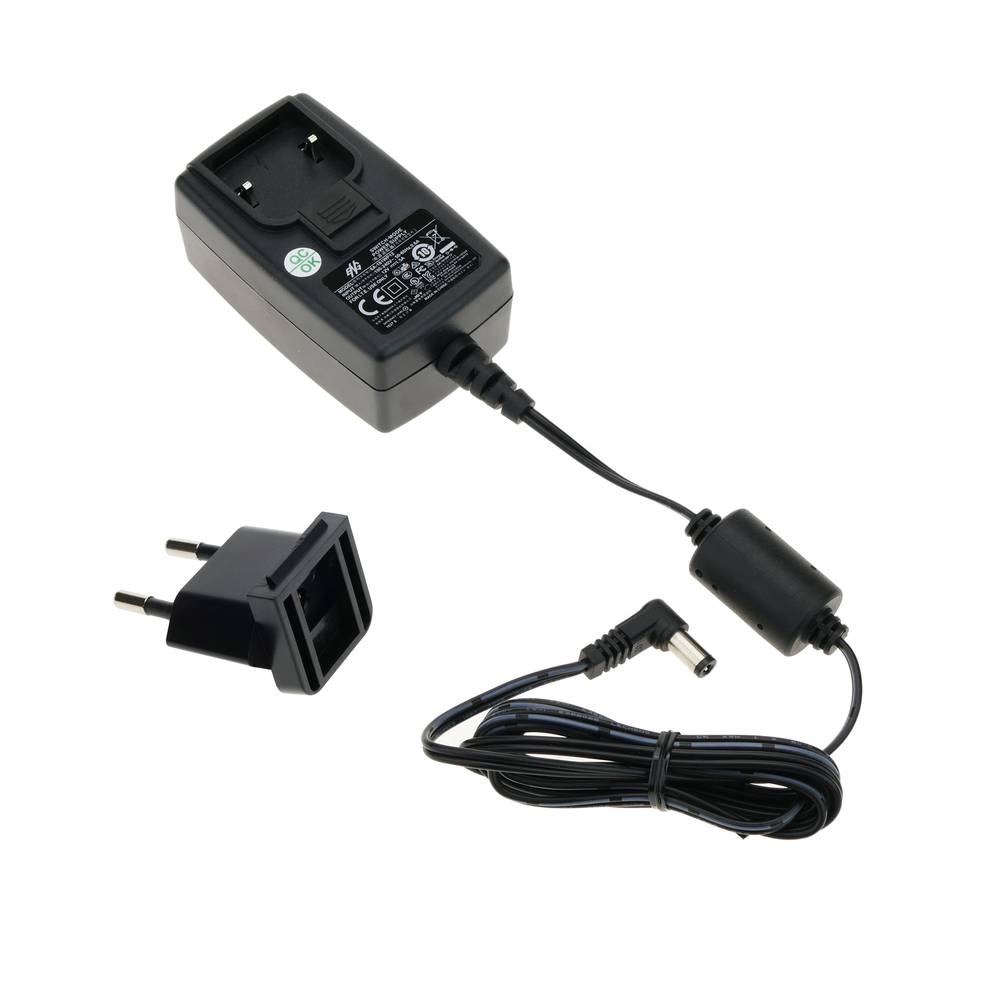

- Connector for 12VDC external power supply (supplied).
- LED status and operational indicator.

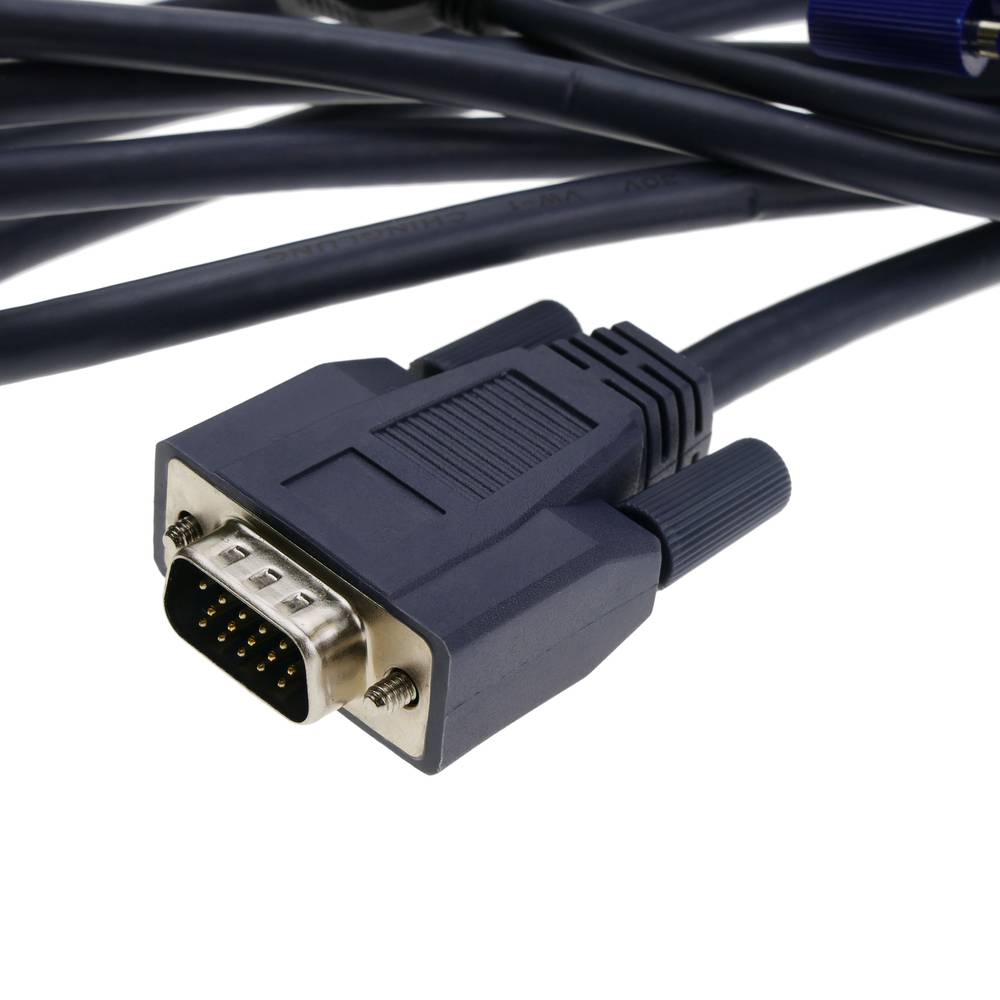

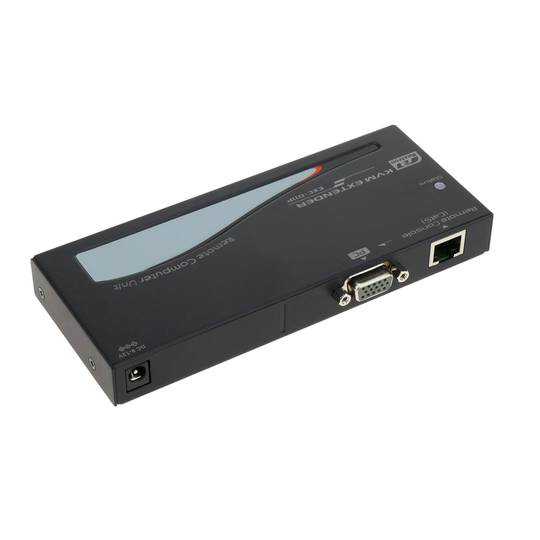

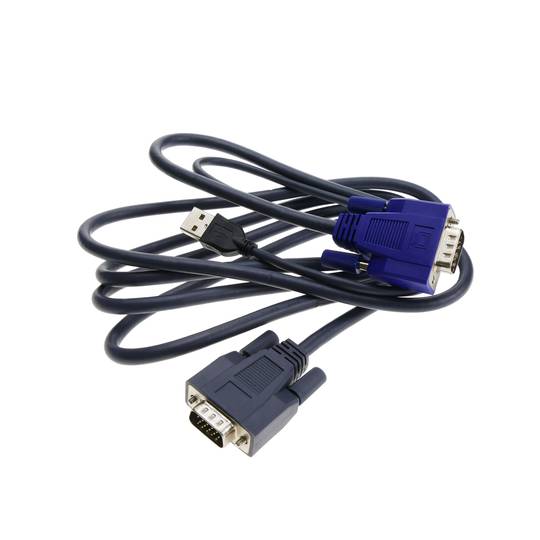

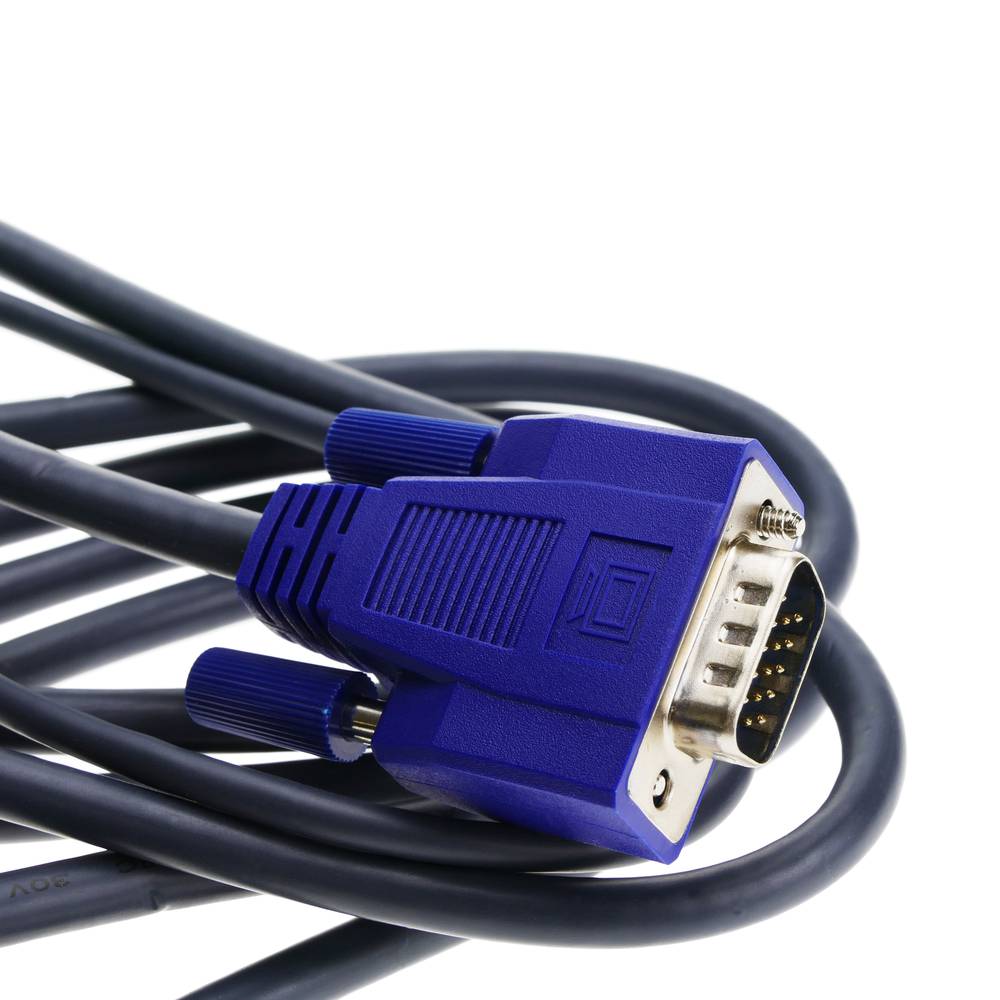

- Connector for PC. It is a Female HD15 connector that is used in conjunction with a special cable that has HD15-Male on one end and on the other end USB A-Male connector (keyboard and mouse) and 1xHD15-Male (VGA). The cable is supplied and is 1.8m long.
- RJ45-Female connector for interconnection of both modules.
- Connector for 12VDC external power supply (not supplied since the use of the source in the Computer Unit is optional).
- LED status and operational indicator.
- Interconnection of modules with Cat.5 UTP cable at a maximum distance of 200 m.
- Maximum resolution of 1920 x 1200 (WUXGA) and 1920 x 1080 (Full HD).
- Adjustment of the video quality through keyboard by means of a combination of keys (hotkeys).
- Size modules: 156 x 65 x 20 mm.
- Weight modules: 293 g.
- Gross Weight: 1.22 kg
- Product size (width x depth x height): 15.6 x 7.0 x 2.0 cm
- Number of packages: 1
- Packages size: 29.5 x 24.5 x 8.5 cm
- Master-pack: 6
Technical terms
- Categories network cables
- RJ45
- Reversible USB Type-C
- KVM
- 1080p
- USB 3.0
- Types of network cables (UTP, FTP, STP)
- Mini USB
- MicroUSB
- VGA
- USB
- HD High definition
Categories network cables
Depending on the quality and type, network cables are classified into categories that help us know the characteristics of them.
The categories of network cables most commonly used are:
- Category 5
- Category 5e
- Category 6
- Category 6
- Category 7
As can be seen, category 5e (enhanced or improved) and category 6A (Augmented), are an improvement of categories 5and 6, respectively, which it has improved the top speed and bandwidth.
The higher the category, the higher the speed of maximum data, the maximum 100 meters distance as its standard.
You can see a table which shows the 5 categories, where V is the maximum velocity, D is the maximum and MHz frequency which can work away.
The categories of network cables most commonly used are:
- Category 5
- Category 5e
- Category 6
- Category 6
- Category 7
As can be seen, category 5e (enhanced or improved) and category 6A (Augmented), are an improvement of categories 5and 6, respectively, which it has improved the top speed and bandwidth.
The higher the category, the higher the speed of maximum data, the maximum 100 meters distance as its standard.
You can see a table which shows the 5 categories, where V is the maximum velocity, D is the maximum and MHz frequency which can work away.
