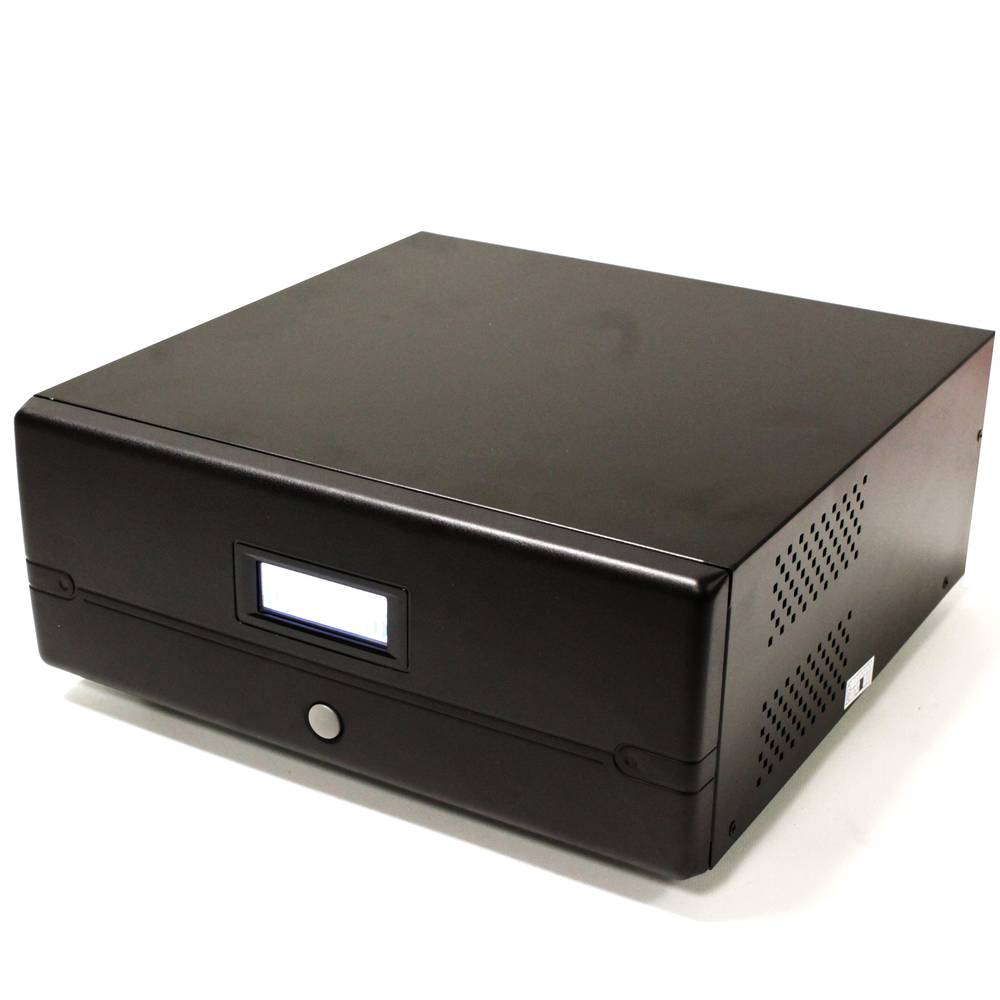

230VAC pure wave inverter with 12V battery charger 1200VA model
230VAC pure wave inverter with 12V battery charger 1200VA model
REF: IV042
OUTLET
Specifications
- 1200VA/840W capacity.
- Input voltage: 230 VAC.
- Input voltage range switch: 170V-280V (computers) or 90V-280V (appliances).
- Input frequency: 50/60 Hz automatic.
- Protector: 10A/250VAC.
![play_button]()
Watch video
More info
Watch video
PVP
€128.19
€41.02
Price including VAT:
€50.45
PVD
€112.68
€36.06
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
OUTLET
Specifications
- 1200VA/840W capacity.
- Input voltage: 230 VAC.
- Input voltage range switch: 170V-280V (computers) or 90V-280V (appliances).
- Input frequency: 50/60 Hz automatic.
- Protector: 10A/250VAC.
Related products
Keywords
Did not find what you were looking for? These topic could help you
Purchased together regularly
More info
Pure wave inverter with battery charger. Ideal to have stable energy. The charger/inverter is connected simultaneously to a battery bank and the 220 VAC power grid. As long as 220VAC electrical power is supplied, the batteries are charged. When 220VAC power is not supplied, the DC/AC inverter supplies power from the batteries, and converts it to 220VAC. Ideal equipment to supplystrar energy in cases of emergency, and to design a backup system of electricity supply.
Specifications
- 1200VA/840W capacity.
- Input voltage: 230 VAC.
- Input voltage range switch: 170V-280V (computers) or 90V-280V (appliances).
- Input frequency: 50/60 Hz automatic.
- Protector: 10A/250VAC.
- Voltage of salida: 230VAC ± 5%.
- Efficiency: 90%.
- Transfer time: 10ms (computers) or 20ms (appliances).
- Pure wave output.
- Battery voltage: 12 VDC.
- Maximum load capacity: 10A or 20A (selectable by switch).
- Overload protection and short circuit.
- Size: 289 x 290 x 127 mm.
- Net weight: 4.8 Kg.
- Batteries not included.

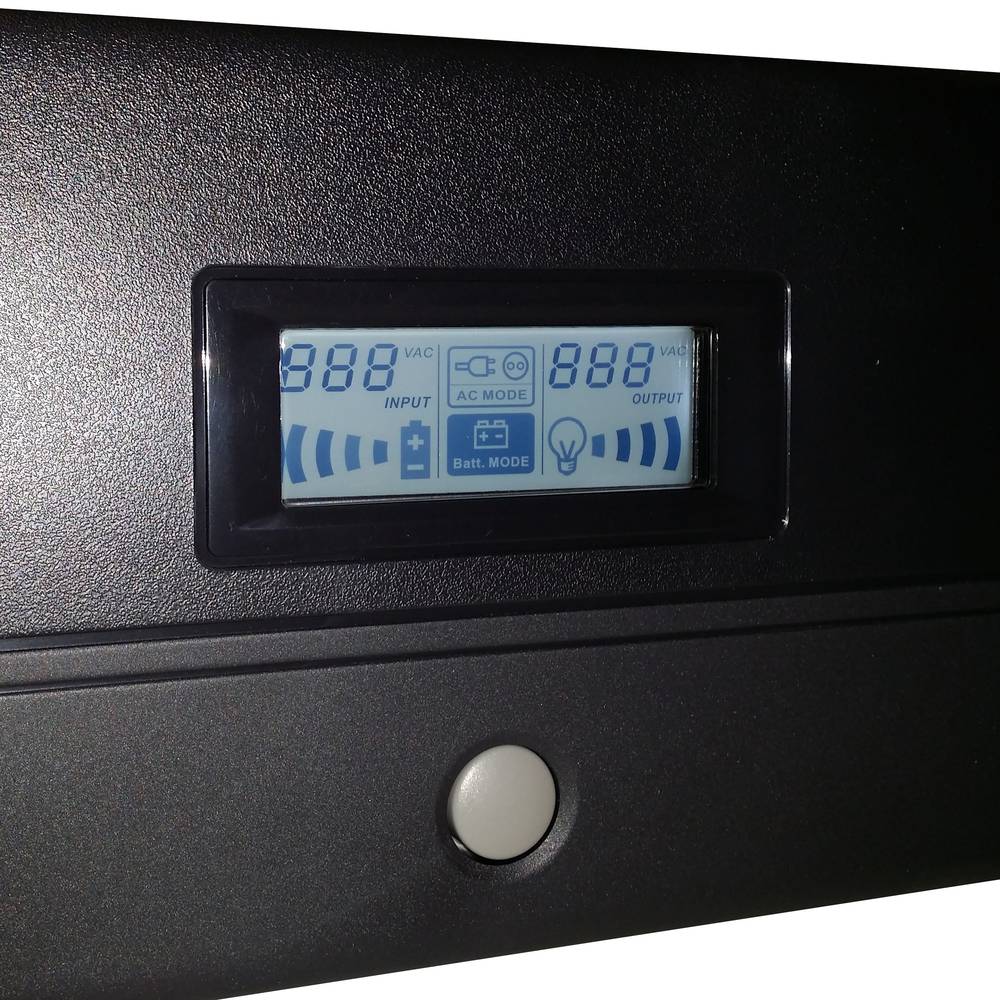

- Gavepush button ON/OFF and viewfinder on the front.

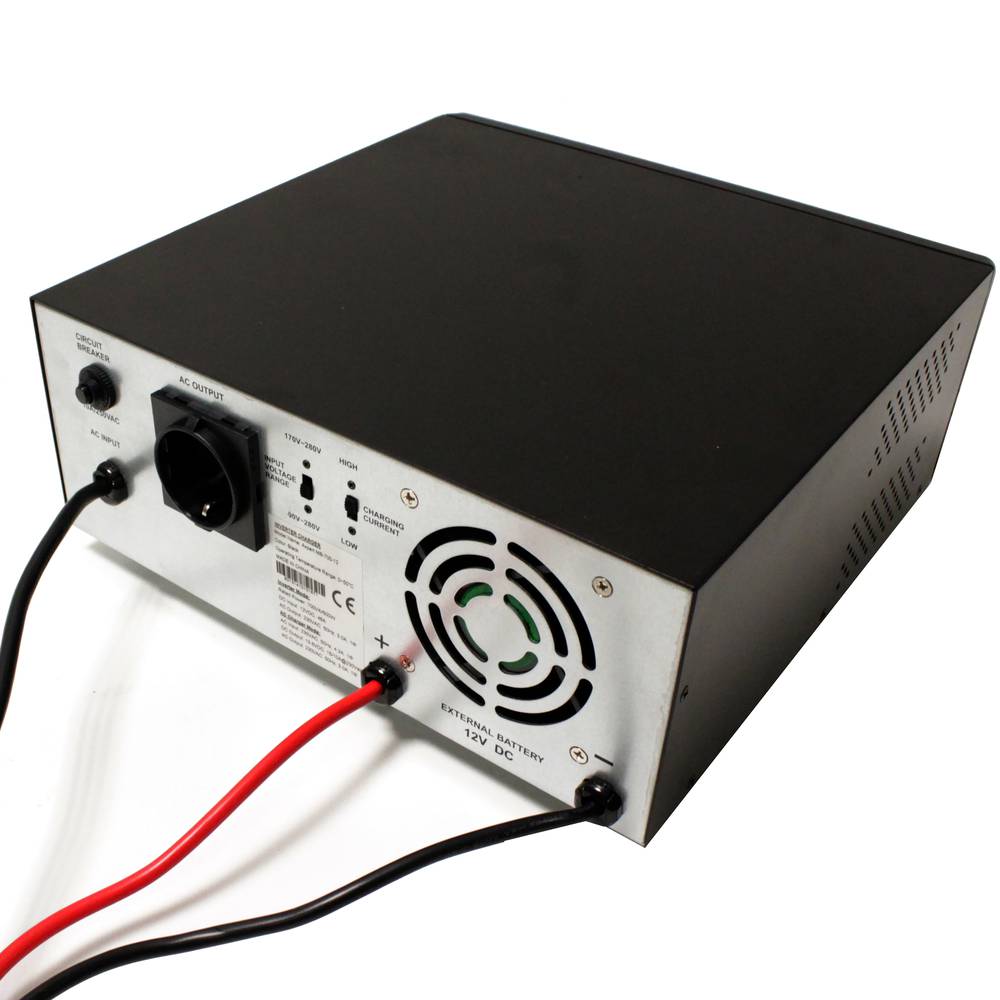

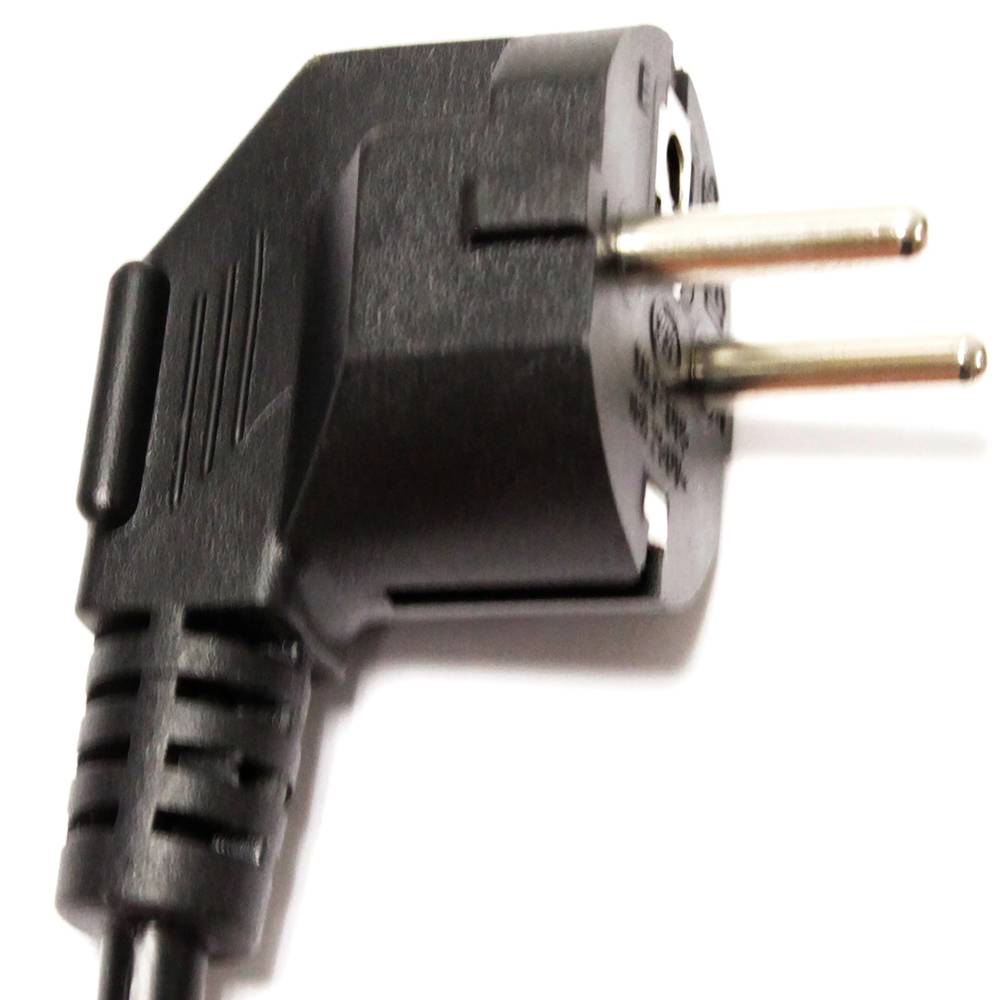

- It has finished cable in male schuko for connection to the electrical network.
- It has a female schuko plug for AC output.

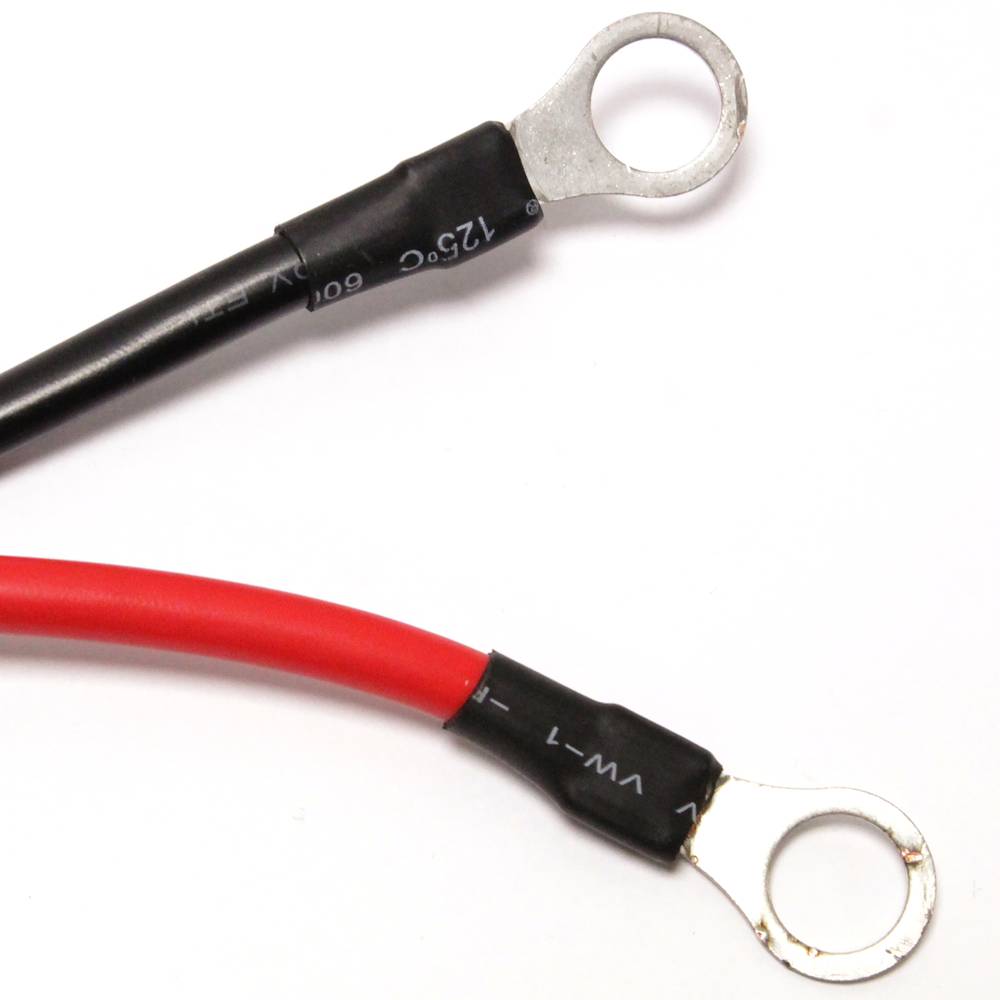

- It has 2 terminals with cable, for connection to the battery bank.
- Gross Weight: 5.8 kg
- Product size (width x depth x height): 29.0 x 29.0 x 13.0 cm
- Number of packages: 1
- Packages size: 40.0 x 37.0 x 22.0 cm
Technical terms
- Hz
- Schuko
- VDC
- VAC
Hz
One hertz is one cycle per second, meaning repeating cycle as an event. For example, hertz is applied physics measuring the number of times for a second wave (either acoustic or electromagnetic) is repeated or can be applied, among other uses, to ocean waves that reach the Beach vibrations per second or a solid. The quantity that measures the frequency hertz is called,in this regard, the inverse of the period. One hertz is an oscillation frequency of suffering a particle over a period of one second.
