Base for square/triangular Truss structure made of metal. Compatible with square truss structures, side 150mm and 300mm, because it has perforations compatible with both formats. The different Trusses allow the union of its components through M10 bolts. Easy to assemble and configure according to the client's needs. Ideal to be used in stages, stages, stands, exhibitors, DJ booths, discothequedolls, concerts, as lighting supports, support structures, etc.

Specifications

• Compatible with the system of square truss structure side 150 mm and 300 mm.
• Silver color of galvanized metal.

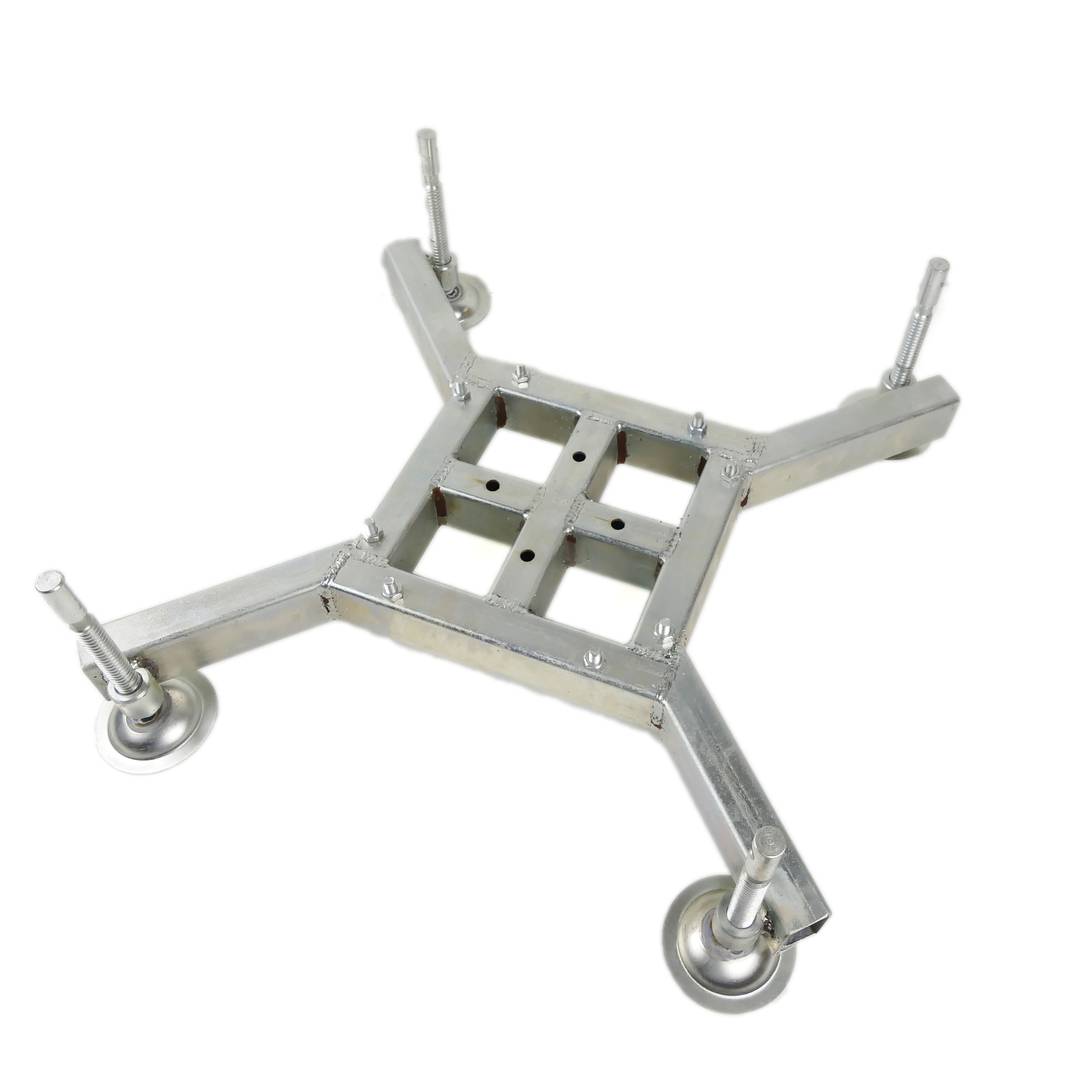

• Rectangular base size 600 x 600 mm (virtual square defined by the structure).

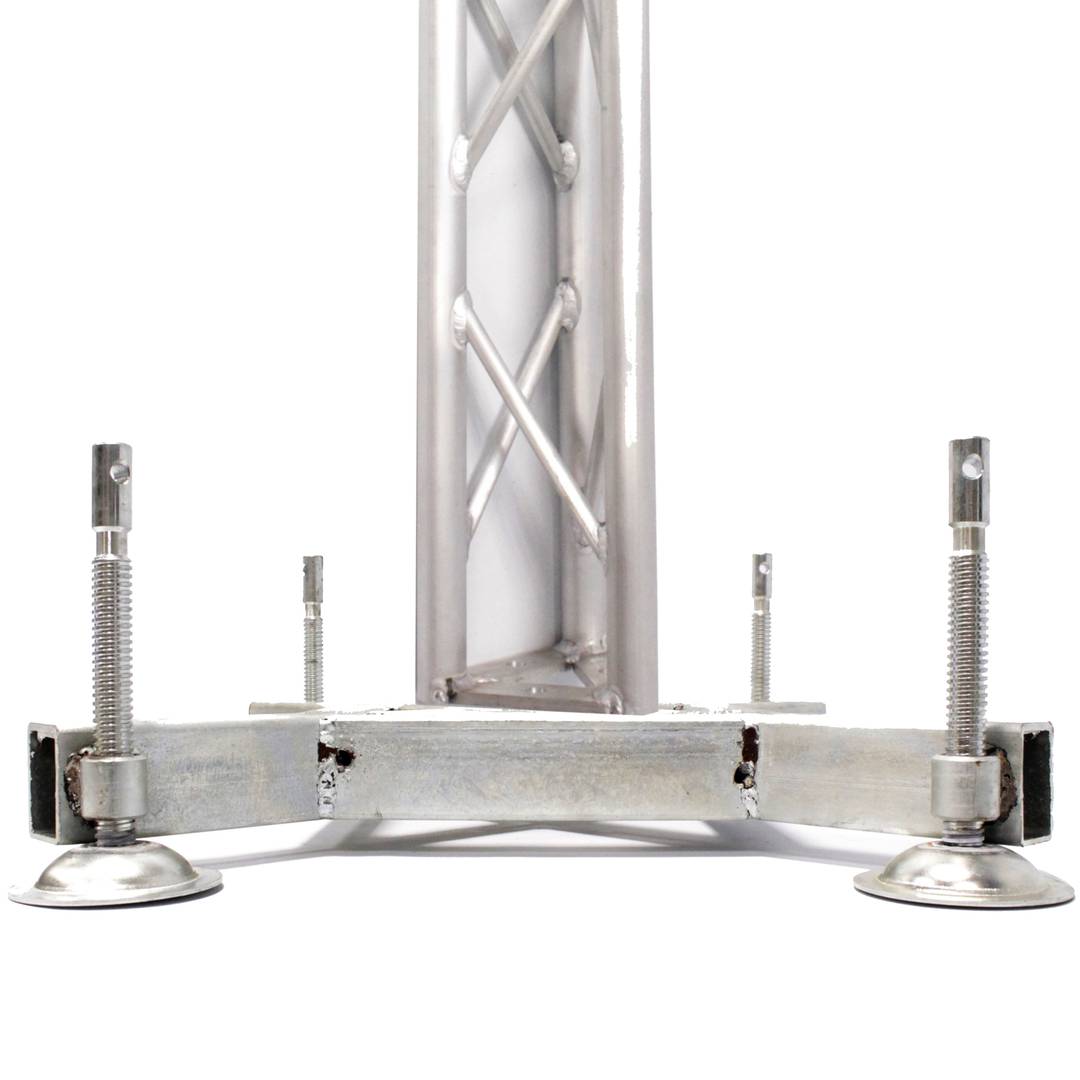

• Solid structure on which an assembly of different truss modules can be supported.

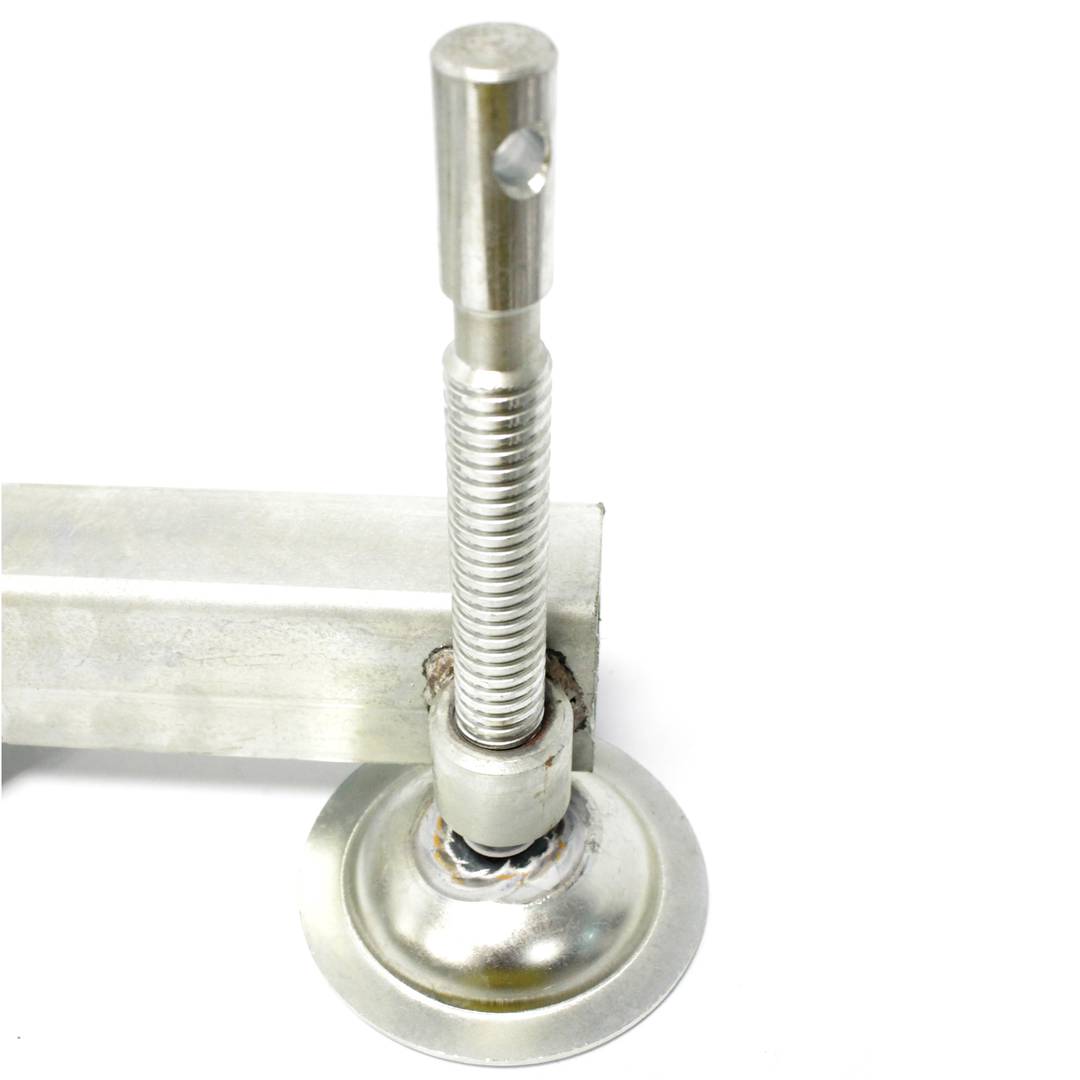

• It has 4 feet of leveling by means of thread, that allow to adapt the base to the irregularities of the floor, so that the structure is correctly leveled. Correct leveling is the key to any truss structure. Diameter of the bases of 100 mm.
• Union of different Truss elements by M10 metric bolts.

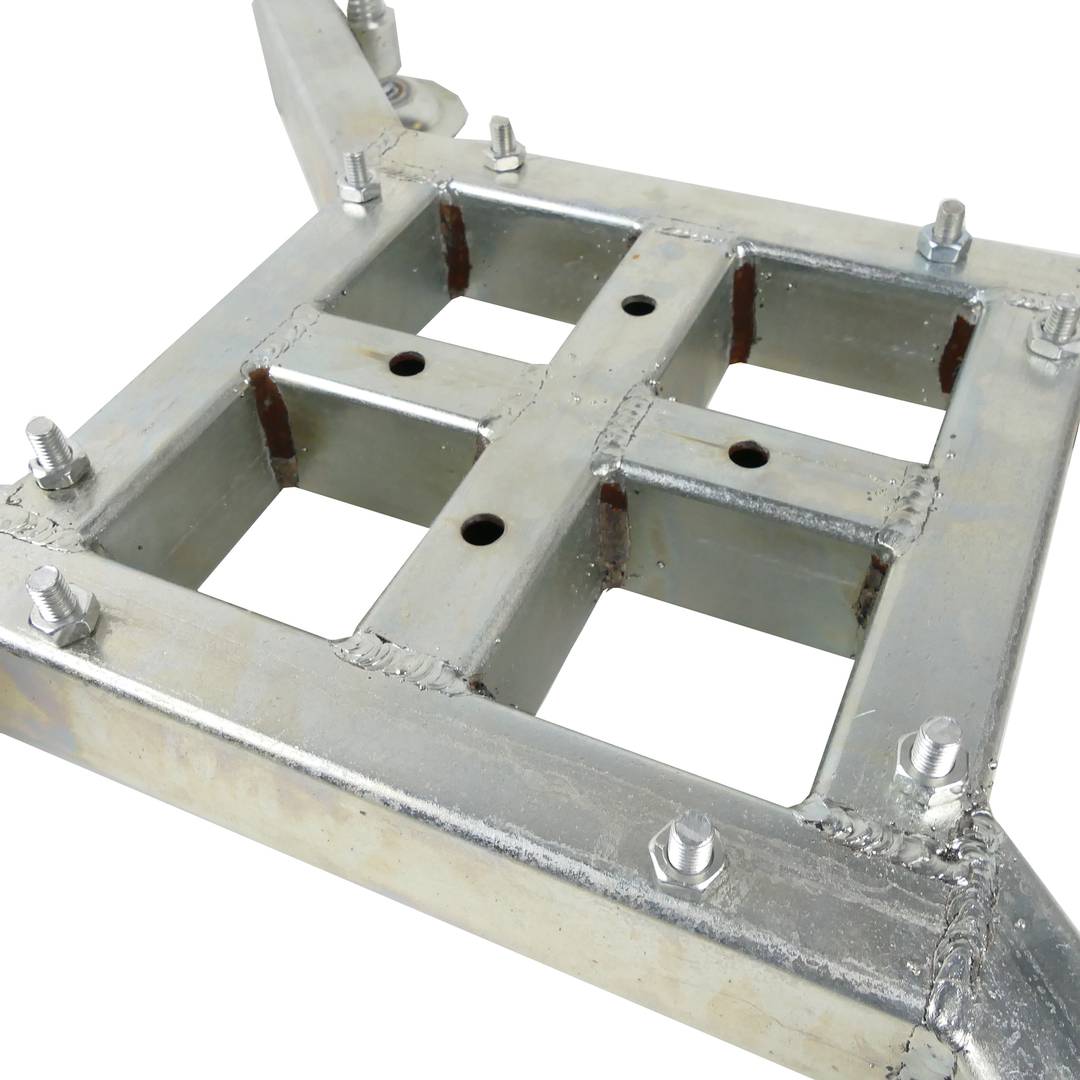

• It has 4 union holes (12mm) for fixing structure150 mm square truss.
• It has 8 perforations (12mm) of union (with screws) for the fixation of square truss structure of 300 mm.
• Approximate weight of 4 Kg).
• High resistance Manufactured in metal tube section 60x40 mm. Thickness of the 3 mm metal tube.

• Gross Weight: 12.1 kg
• Number of packages: 1
• Packages size: 50.0 x 50.0 x 21.0 cm
