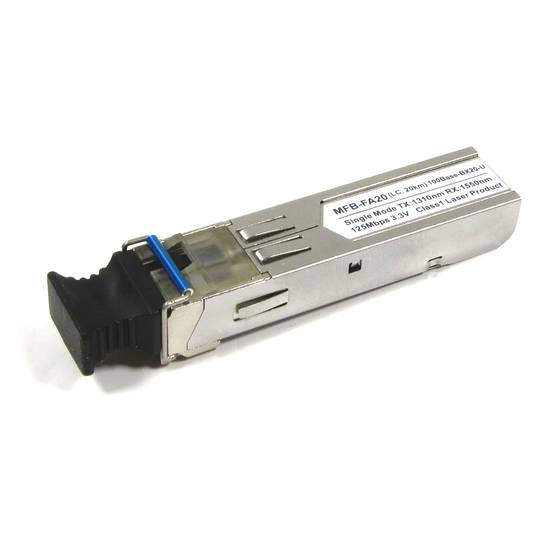

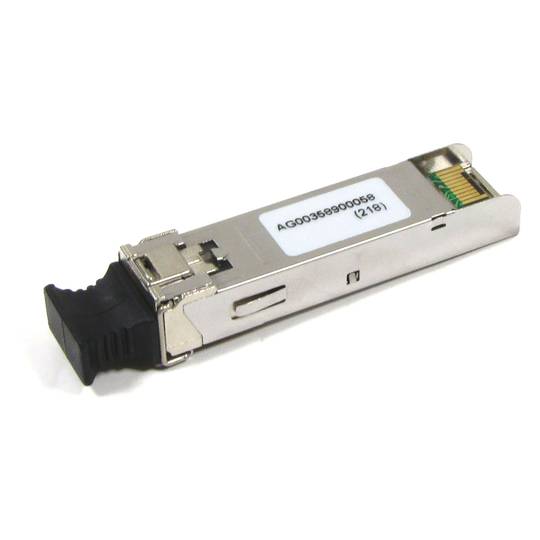

Mini-GBIC Module SFP 100Mbps (WDM Tx: 1310nm 20Km)
REF: RH054
Specifications
  • Meets the IEEE 802.3U 100Base-FX (125 Mbps) standard.
  • A fiber optic port of 100Mbps.
  • SFP format (Smart Form Factor Pluggable).
  • FDDI ISO 125 Mbps/IEC 9314-1 compliant.
  • Serial ID functionality.
More info
PVP 16.26
6.18
Price including VAT: 7.60
PVD 14.29
5.43
Shipping costs: 41,25 *
IE-D02 DY88
2 years
warranty
14 days
returns
OUTLET

In stock
Only 2 units

More info
Specifications
  • Meets the IEEE 802.3U 100Base-FX (125 Mbps) standard.
  • A fiber optic port of 100Mbps.
  • SFP format (Smart Form Factor Pluggable).
  • FDDI ISO 125 Mbps/IEC 9314-1 compliant.
  • Serial ID functionality.

Keywords

Did not find what you were looking for? These topic could help you

More info

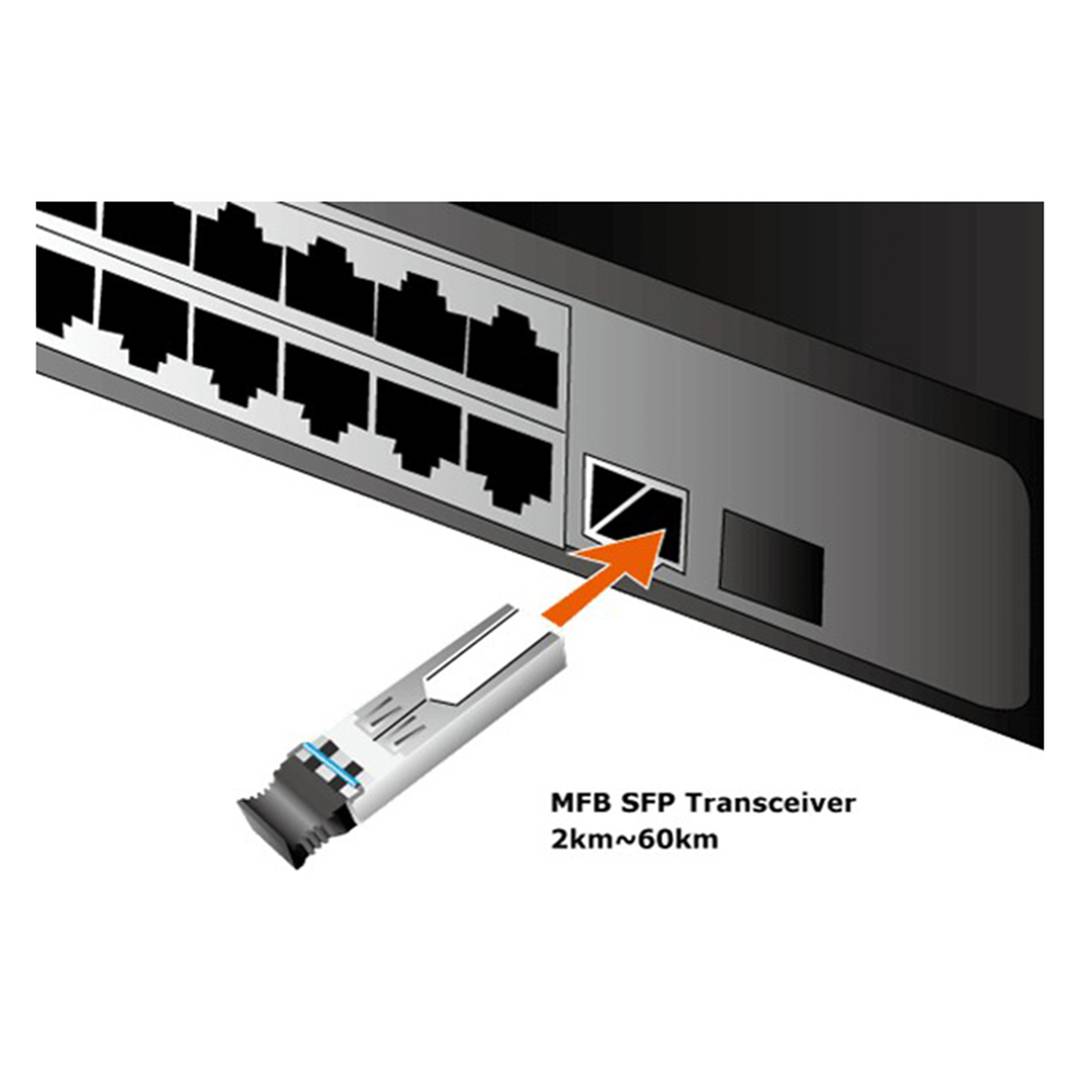

Mini-GBIC or SFP (Smart Form Factor Pluggable) expansion slot to be installed on LAN switches that have a Mini-GBIC or 100Mbps SFP slot.


Specifications
  • Meets the IEEE 802.3U 100Base-FX (125 Mbps) standard.
  • A fiber optic port of 100Mbps.
  • SFP format (Smart Form Factor Pluggable).
  • FDDI ISO 125 Mbps/IEC 9314-1 compliant.
  • Serial ID functionality.
  • Tickets and salias differential AC.
  • Laser product of class 1 (IEC 825).
  • Low consumption.
  • Fiber mono-mode (SM) type 9/125um.
  • WDM/Bidi LC connector.
  • Wavelength Tx: 1310 nm and Rx: 1550 nm.
  • Maximum distance 20 Km.
  • Gross Weight: 130 g
  • Number of packages: 1
  • Master-pack: 18

Technical terms

  • GBIC
  • SFP
GBIC
A Gigabit Interface Converter (GBIC, for short) is a module that is available in many forms, depending on the model and manufacturer of the brand. Each has the same function which is to increase the speed of data transfer through a network. Companies that need to transfer large amounts of data quickly, sometimes using a GBIC module for greater control and profitability. A GBIC moduleIt allows users to reconfigure fiber links, set costs of adapting the receptor and link distances network topologies and requirements established. Used in an optical fiber or Ethernet system, the GBIC modules can update, change or connect without turning off the computer. This flexibility eliminates the need to replace the entire network system together.

Do you have any question about this product?
