TOOQ wall mount for 32" - 70" screens VESA 75x75 up to 400x400 mm
TOOQ wall mount for 32" - 70" screens VESA 75x75 up to 400x400 mm
REF: OU104
Specifications
- Wall fixing support for flat screen compatible with the VESA fixing standards of 75x75, 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 200x300, 300x200, 200x400, 300x400, 300x300, 400x200, 400x300 and 400x400 mm.
- The structure supports a maximum weight of 45 kg.
- The bracket places the screen at a distance of 20 mm from the wall.
- It can be adjusted according to screen size, but once installed it is not adjustable to other heights or inclinations.
- Support made of high resistance metal that guarantees greater durability.
Watch video
PVP
€9.00
Price including VAT:
€11.07
PVD
€9.81
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- Wall fixing support for flat screen compatible with the VESA fixing standards of 75x75, 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 200x300, 300x200, 200x400, 300x400, 300x300, 400x200, 400x300 and 400x400 mm.
- The structure supports a maximum weight of 45 kg.
- The bracket places the screen at a distance of 20 mm from the wall.
- It can be adjusted according to screen size, but once installed it is not adjustable to other heights or inclinations.
- Support made of high resistance metal that guarantees greater durability.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info
Wall mount for flat screen TV. Base for screen, based on a robust metal support structure with vertical structures adjustable according to screen size, which gives stability to the structure. Strong, durable and easy to install bracket. It is a fixed support system, it is not adjustable once the screen is installed. Manufactured by TOOQ, with reference LP4170F-B.
Specifications
Specifications
- Wall fixing support for flat screen compatible with the VESA fixing standards of 75x75, 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 200x300, 300x200, 200x400, 300x400, 300x300, 400x200, 400x300 and 400x400 mm.
- The structure supports a maximum weight of 45 kg.

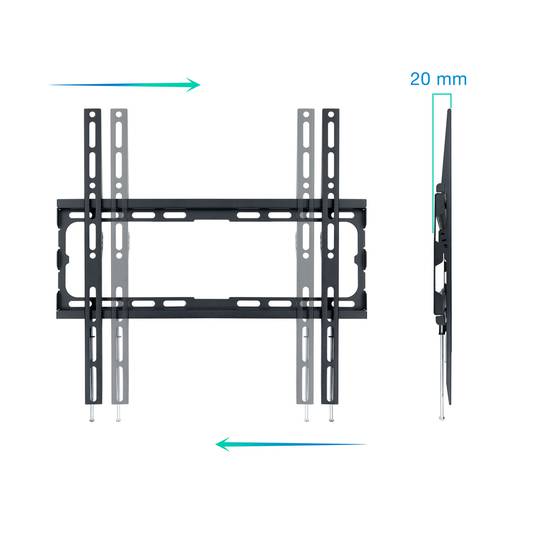

- The bracket places the screen at a distance of 20 mm from the wall.
- It can be adjusted according to screen size, but once installed it is not adjustable to other heights or inclinations.
- Support made of high resistance metal that guarantees greater durability.

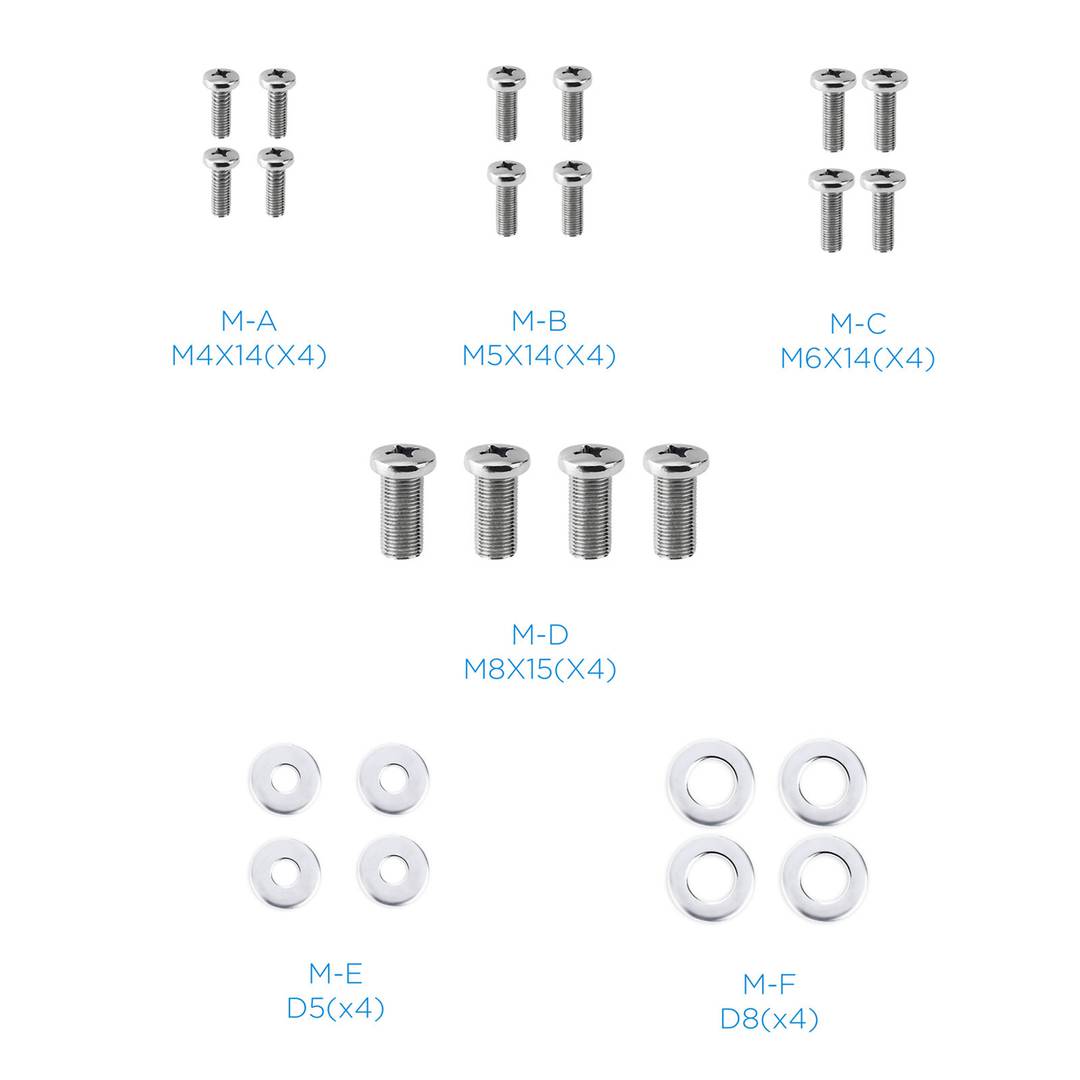

- Special metallic base to be fixed on the wall. Includes screws for installation.
- Ideal for flat TV screens, LCD, etc., between 32 and 70 inches (32" - 70").

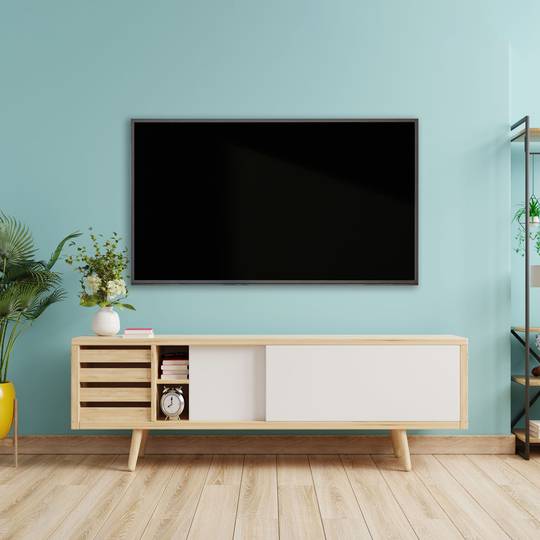

- Perfect to be installed on a wall, ideal for both home and work.
- black colour.
- Gross Weight: 900 g
- Product size (width x depth x height): 44.5 x 2.0 x 41.8 cm
- Number of packages: 1
- Packages size: 45.0 x 17.5 x 2.0 cm
- Master-pack: 1
Technical terms
- VESA
VESA
The standard VESA (Video Electronics Standards Association) is a standard that regulates the type of fastening enen the monitor, which is by screws 12-16 mm., Forming a square, which is divided into 3 groups. MIS-D 75x75 mm. or 100x100 mm. - These are the measures most commonly used in monitors, depending on their size, with a maximum weight of 14 kg MIS-E, 200 x 100 mm.. used in TVs up to 23.7 kg. MIS-F, 200 x 200 mm. or 300 x 300 mm. - Used in TVs with a maximum weight of 113.6 kg There are some sizes, and in increments of 200 x 200 mm.. for large screens.
